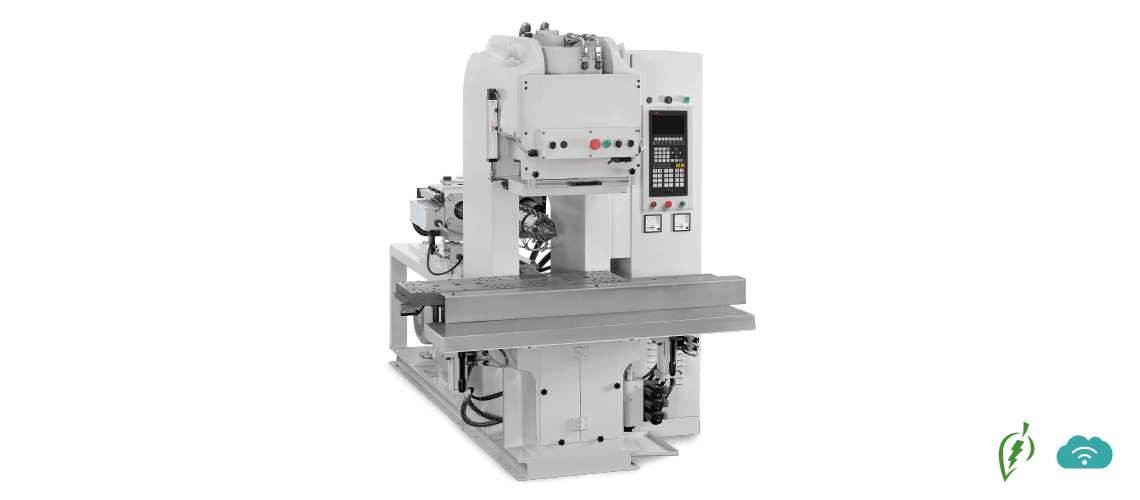

Features
- Tie-bar less (C type) design gives more space for operation. Especially suitable for the power cord and connector with wire.
- With double slide table or rotary design, put in, takeout products and molding finish at the same time, which is more safe and efficient for production , thus reduce the cost of production.
- High precision mold platen ( Parallelism/ flatness : 0.01/100 mm), heavy duty tie bars, and low pressure mold clamping work together to greatly extend machine & mold life.
- Nitrite and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and provide superior acid/alkaline resistance.
- Heavy-duty double cylinder injection unit is maintenance friendly and free of oil leaks.
- All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
- Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
- Low oil temperature, durable parts, high speed injection, and quiet operation.
- Controller can record the production conditions such as temperature, pressure, flow, position available on the panel, reducing adjust of machine.
- All machine with compact , space-saving design, resolve the floor space shortage problem of factory.
- Material injected through parting line to cavities.
Vertical Injection Horizontal Clamping
Suitable for thick-wall
product
Suitable for Much Injection Capacity
Safety Design For Operator
Energy Saving
Main specifications
| MODEL | K110-20DC-2 | K170-28DC-2 | K250-40DC-2 | K500-60DC-2 | K500-80DC-2 | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Injection Unit | |||||||||||||||||||||||||||||||||
| Screw Diameter | mm | 24 | 28 | 34 | 28 | 32 | 38 | 31 | 38 | 44 | 36 | 44 | 50 | 36 | 44 | 50 | |||||||||||||||||
| Injection Pressure | kgf/cm² | 2333 | 1714 | 1163 | 2321 | 1777 | 1260 | 2447 | 1629 | 1215 | 2463 | 1649 | 1277 | 2463 | 1649 | 1277 | |||||||||||||||||
| Injection Capacity | cm³ | 50 | 68 | 100 | 74 | 96 | 136 | 106 | 159 | 213 | 203 | 304 | 393 | 203 | 304 | 393 | |||||||||||||||||
| Injection Weight (PS) | oz | 1.7 | 2.3 | 3.3 | 2.5 | 3.2 | 4.5 | 3.5 | 5.3 | 7.1 | 6.8 | 10.1 | 13.1 | 6.8 | 10.1 | 13.1 | |||||||||||||||||
| gram | 47 | 64 | 94 | 70 | 91 | 129 | 100 | 150 | 201 | 192 | 287 | 371 | 192 | 287 | 371 | ||||||||||||||||||
| Injection Rate | cc/s. | 37 | 51 | 75 | 61 | 80 | 113 | 58 | 87 | 117 | 74 | 110 | 142 | 74 | 110 | 142 | |||||||||||||||||
| Screw Stroke | mm | 110 | 120 | 140 | 200 | 200 | |||||||||||||||||||||||||||
| Nozzle Stroke | mm | 150 | 150 | 150 | 150 | 150 | |||||||||||||||||||||||||||
| Nozzle Contact Force | tf | 2 | 2 | 2 | 3.3 | 3.3 | |||||||||||||||||||||||||||
| Injection Speed | mm/sec | 82 | 99 | 77 | 72 | 72 | |||||||||||||||||||||||||||
| Screw Rotation Speed | rpm | 0 ~ 180 | 0 ~ 180 | 0 ~ 180 | 0 ~ 180 | 0 ~ 150 | |||||||||||||||||||||||||||
| Clamping Unit | |||||||||||||||||||||||||||||||||
| Clamping Force | tf | 20 | 28 | 40 | 60 | 80 | |||||||||||||||||||||||||||
| Clamping Stroke | mm | 155 | 155 | 155 | 175 | 175 | |||||||||||||||||||||||||||
| Max. Mould Space | mm | 305 | 353 | 367 | 372 | 372 | |||||||||||||||||||||||||||
| Min. Mold Height | mm | 150 | 198 | 212 | 197 | 197 | |||||||||||||||||||||||||||
|
Overall Size of Platens (H*V) |
mm | 340*230 | 400*230 | 400*250 | 450*280 | 550*300 | |||||||||||||||||||||||||||
|
Space Between Columns (H*V) |
mm | - | - | - | - | - | |||||||||||||||||||||||||||
| Ejector Force | tf | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | |||||||||||||||||||||||||||
| Ejector Stroke | mm | 40 | 40 | 40(100) | 40 | 40 | |||||||||||||||||||||||||||
| Mold Transfer Unit | |||||||||||||||||||||||||||||||||
| Type* | 2S | R | 2S | R | 2S | R | 2S | R | 2S | R | |||||||||||||||||||||||
| Moving Table Stroke | mm | 400 | 510 | 510 | 550 | 650 | |||||||||||||||||||||||||||
|
Sizing of Moving Table (H*V/DIA) |
mm | 750*230 | ∅600 | 920*230 | ∅780 | 920*230 | ∅880 | 1000*280 | ∅980 | 1200*300 | ∅1200 | ||||||||||||||||||||||
| Moving | |||||||||||||||||||||||||||||||||
|
Drive Motor (with Variable pump) |
kw(HP) | 3.7(5HP) | 5.5 (7.5HP) | 6.8(8HP) | 9(12HP) | 9(12HP) | |||||||||||||||||||||||||||
| Heater | kw | 4.9 | 5.5 | 6 | 10.4 | 10.4 | |||||||||||||||||||||||||||
| System Pressure | kgf/cm² | 140 | 140 | 140 | 140 | 140 | |||||||||||||||||||||||||||
| Oil Tank Capacity | L | 100 | 150 | 150 | 200 | 200 | |||||||||||||||||||||||||||
|
Dimension of Machine ﹝L*W*H﹞ |
m |
1.8 * 0.8 * 1.6 |
1.8 * 1.0 * 1.6 |
2.0 * 1.0 * 1.6 |
2.1 * 0.9 * 1.6 |
2.1 * 1.1 * 1.6 |
2.6 * 1.7 * 1.6 |
2.4 * 1.0 * 1.7 |
2.4 * 1.5 * 1.7 |
2.7 * 1.2 * 1.7 |
2.6 * 1.1 * 1.9 |
2.6 * 1.3 * 1.9 |
3.0 * 1.4 * 1.9 |
2.7 * 1.2 * 2.0 |
2.7 * 1.4 * 2.0 |
3.4 * 1.5 * 2.0 |
|||||||||||||||||
| Weight of Machine | ton | 2 | 2.2 | 2.4 | 2.4 | 2.6 | 3 | 2.6 | 2.9 | 3.5 | 3.5 | 3.8 | 4.5 | 4 | 4.5 | 6 | |||||||||||||||||
Type*: 1S=Single Slide Table; 2S=Shuttle Table; R = Rotary Table; V=Fixed Planten
| Standard Equipment List | ||
|---|---|---|
| Clamping Unit | Low pressure protection for clamping | |
| Control | Controller (IPC / Single chip with double CPU) | |
| Hydraulic Unit | Variable pumps + PQ valve | |
| Injection Unit |
Multi-stage injection control Nozzle forward position to confirm |
|
| Others |
Auto purge Return Oil filter device Over-heat protection for oil & plastic Cooling system |
|
| Options List | ||
| Clamping Unit |
Shuttle table Rotary table (Hydraulic / Sevo-motor) Core device Electric eye & Light curtain safety device Air blow of mold Pressure sensor |
|
| Injection Unit |
Bi-metal screw & barrel / Nitroflon surface trearment Shut-off nozzle Ceramics heater band |
|
| Others |
Chiller Mold temperature controller Warm up function for hydraulic oil Dehumidifying dryer Automatic vacuum loaders Hoper dryer Robot & Automatic device |
|
