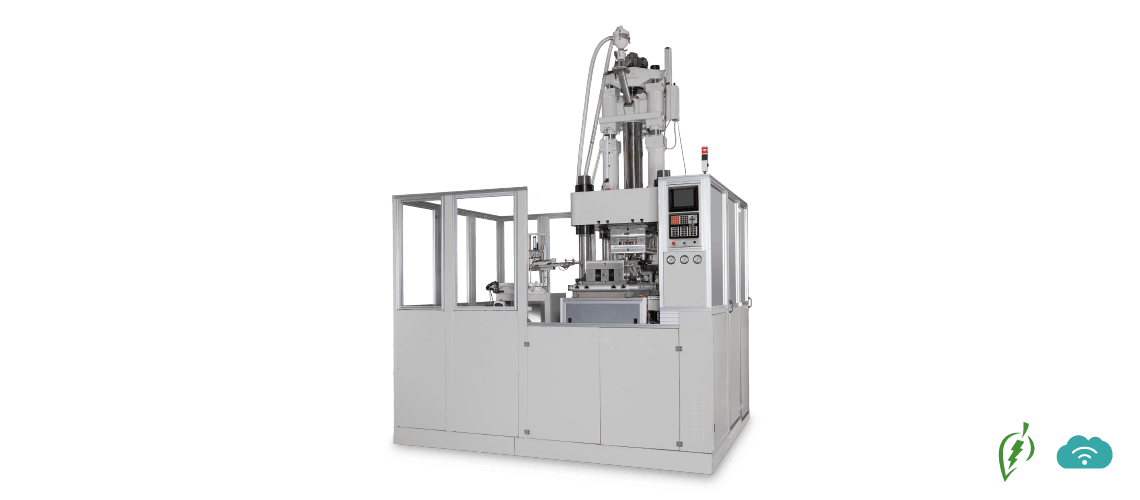

Features
- Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.
- With double slide table or rotary design, put in, takeout products and molding finish at the same time, which is more safe and efficient for production , then reduce the cost of production.
- High precision mold platen ( Parallelism / flatness : 0.02/100 mm), heavy duty tie bars, and low pressure mold clamping work together to greatly extend machine & mold life.
- Nitride and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and provide superior acid/alkaline resistance.
- Heavy-duty double cylinder injection unit is maintenance friendly and free of oil leaks.
- All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
- Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
- Low oil temperature, durable parts, high speed injection, and quiet operation.
- Controller can record the production conditions such as temperature, pressure, flow, position available on the panel, reducing adjust of machine.
- All machine with compact , space-saving design, reduce the heavy burden of the floor of factory.
Energy Saving
Output Promotion
Safety Design For Operator
Vertical Hydraulic Clamping System

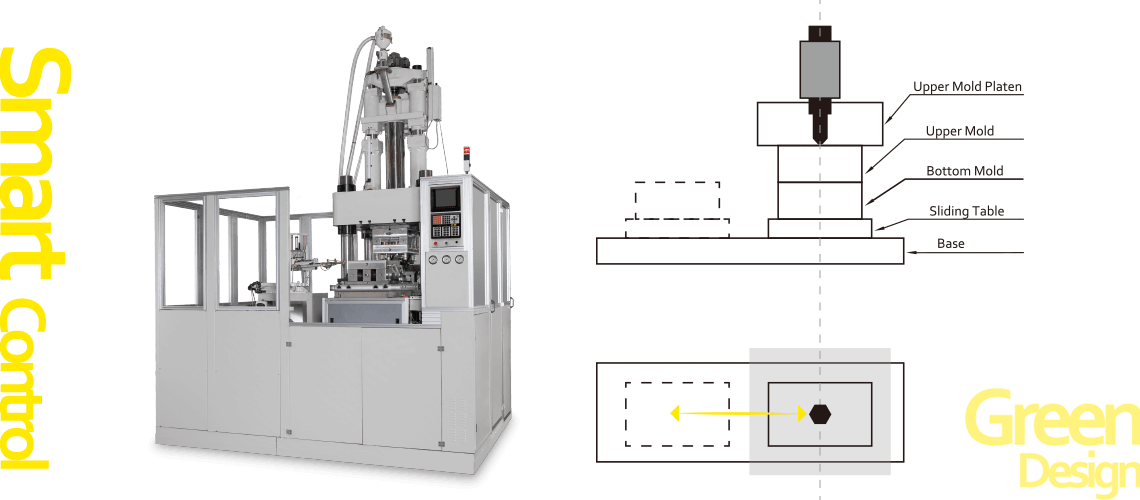

Pick and Place While Molding
Main specifications
| MODEL | K360-110-25DV-1 | K410-180-40DV-1 | K460-250-55DV-1 | K520-360-80DV-1 | K560-460-120DV-1 | K660-760-160DV-1 | |||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Injection Unit | |||||||||||||||||||||||||||||||||||||||
| Screw Diameter | mm | 22 | 28 | 34 | 26 | 32 | 40 | 31 | 38 | 44 | 35 | 40 | 45 | 40 | 45 | 50 | 45 | 50 | 55 | ||||||||||||||||||||
| Injection Pressure | kgf/cm² | 2329 | 1438 | 975 | 2330 | 1538 | 984 | 2447 | 1629 | 1215 | 2286 | 1750 | 1383 | 2226 | 1759 | 1425 | 2191 | 1775 | 1467 | ||||||||||||||||||||
| Injection Capacity | cm³ | 46 | 74 | 109 | 74 | 113 | 176 | 106 | 159 | 213 | 173 | 226 | 286 | 226 | 286 | 353 | 350 | 432 | 522 | ||||||||||||||||||||
| Injection Weight (PS) | oz | 1.5 | 2.5 | 3.6 | 2.5 | 3.8 | 5.9 | 3.5 | 5.3 | 7.1 | 5.8 | 7.5 | 9.5 | 7.5 | 9.5 | 11.8 | 11.7 | 14.4 | 17.4 | ||||||||||||||||||||
| gram | 43 | 70 | 103 | 70 | 106 | 166 | 100 | 150 | 201 | 164 | 214 | 270 | 214 | 270 | 334 | 330 | 408 | 494 | |||||||||||||||||||||
| Injection Rate | cc/s. | 37 | 60 | 89 | 61 | 92 | 144 | 74 | 111 | 149 | 99 | 130 | 164 | 154 | 195 | 241 | 158 | 195 | 236 | ||||||||||||||||||||
| Screw Stroke | mm | 120 | 140 | 140 | 150 | 160 | 200 | ||||||||||||||||||||||||||||||||
| Nozzle Stroke | mm | 180 | 180 | 180 | 180 | 180 | 180 | ||||||||||||||||||||||||||||||||
| Nozzle Contact Force | tf | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | ||||||||||||||||||||||||||||||||
| Injection Speed | mm/sec | 98 | 115 | 98 | 103 | 123 | 99 | ||||||||||||||||||||||||||||||||
| Screw Rotation Speed | rpm | 0 ~ 180 | 0 ~ 180 | 0 ~ 180 | 0 ~ 180 | 0 ~ 150 | 0 ~ 150 | ||||||||||||||||||||||||||||||||
| Clamping Unit | |||||||||||||||||||||||||||||||||||||||
| Clamping Force | tf | 25 | 40 | 55 | 80 | 120 | 160 | ||||||||||||||||||||||||||||||||
| Clamping Stroke | mm | 200 | 200 | 200 | 200 | 250 | 250 | ||||||||||||||||||||||||||||||||
| Max. Mould Space | mm | 400 | 400 | 400 | 400 | 500 | 500 | ||||||||||||||||||||||||||||||||
| Min. Mold Height | mm | 200 | 200 | 200 | 200 | 250 | 250 | ||||||||||||||||||||||||||||||||
| Overall Size of Platens (H*V) | mm | 500*290 | 560*300 | 620*400 | 700*570 | 790*590 | 920*720 | ||||||||||||||||||||||||||||||||
| Space Between Columns (H*V) | mm | 360*150 | 410*150 | 460*240 | 520*385 | 560*360 | 660*460 | ||||||||||||||||||||||||||||||||
| Ejector Force | tf | 0.7(2.7) | 0.9(2.7) | 1.7(2.7) | 1.7(2.7) | 2.7(2.7) | 2.7(2.7) | ||||||||||||||||||||||||||||||||
| Ejector Stroke | mm | 25(60) | 35(60) | 40(100) | 50(100) | 60(100) | 60(100) | ||||||||||||||||||||||||||||||||
| Mold Transfer Unit | |||||||||||||||||||||||||||||||||||||||
| Type* | 1S | 1S | 1S | 1S | 1S | 1S | |||||||||||||||||||||||||||||||||
| Moving Table Stroke | mm | 300 | 300 | 400 | 540 | 570 | 720 | ||||||||||||||||||||||||||||||||
| Sizing of Moving Table(H*V/DIA) | mm | 350*290 | 400*300 | 450*400 | 510*540 | 550*570 | 650*720 | ||||||||||||||||||||||||||||||||
| Others | |||||||||||||||||||||||||||||||||||||||
| Drive Motor (with Variable pump) | kw(HP) | 3.7(5HP) | 5.5 (7.5HP) | 7.5(10HP) | 7.5(10HP) | 11.25(15HP) | 11.25(15HP) | ||||||||||||||||||||||||||||||||
| Heater | kw | 3.4 | 5.6 | 6 | 7.5 | 9 | 11 | ||||||||||||||||||||||||||||||||
| System Pressure | kgf/cm² | 140 | 140 | 140 | 140 | 140 | 140 | ||||||||||||||||||||||||||||||||
| Oil Tank Capacity | L | 140 | 160 | 200 | 200 | 300 | 300 | ||||||||||||||||||||||||||||||||
| Dimension of Machine﹝L*W*H﹞ | m | 1.5*1.0*2.7 | 1.7*1.1*2.9 | 1.8*1.2*3.1 | 2.0*1.4*3.8 | 2.8*1.6*4.2 | 3.0*1.8*4.6 | ||||||||||||||||||||||||||||||||
| Weight of Machine | ton | 1 | 1.6 | 2 | 4 | 5 | 6.5 | ||||||||||||||||||||||||||||||||
Type*: 1S=Single Slide Table; 2S=Shuttle Table; R = Rotary Table; V=Fixed Planten
