Finished Products
Features
Features
- No need to use chemicals. Just Water and Air.
- Multi-function: Efficient cleaning, leaking test, pipe drainage antirust, flow detection and data records.

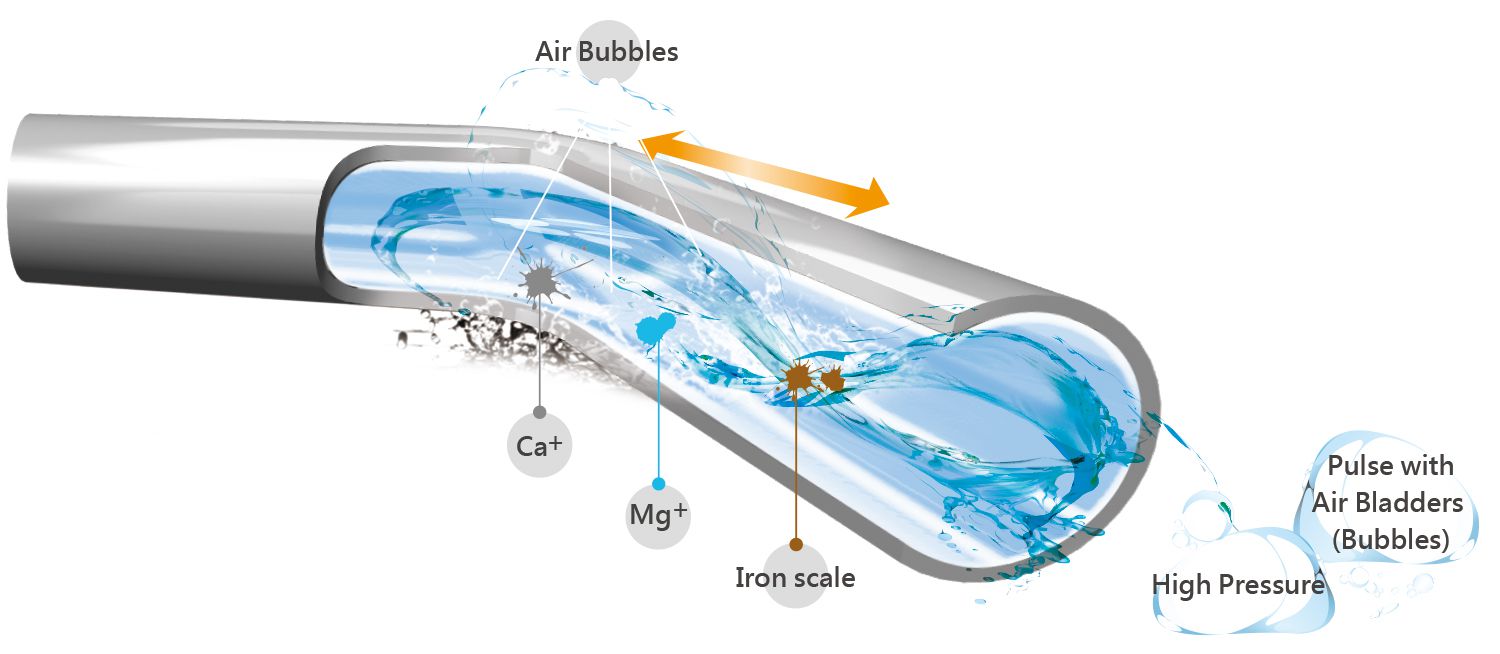

Patented Tech Principle

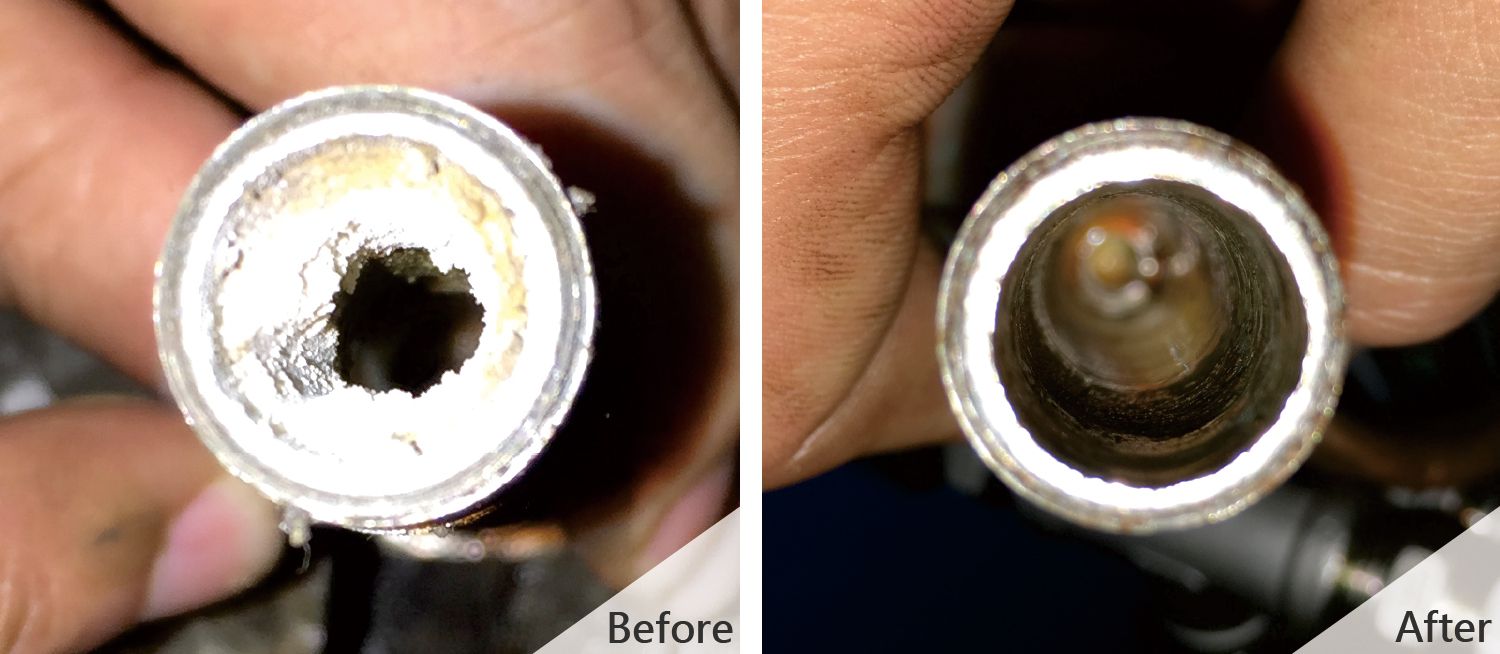

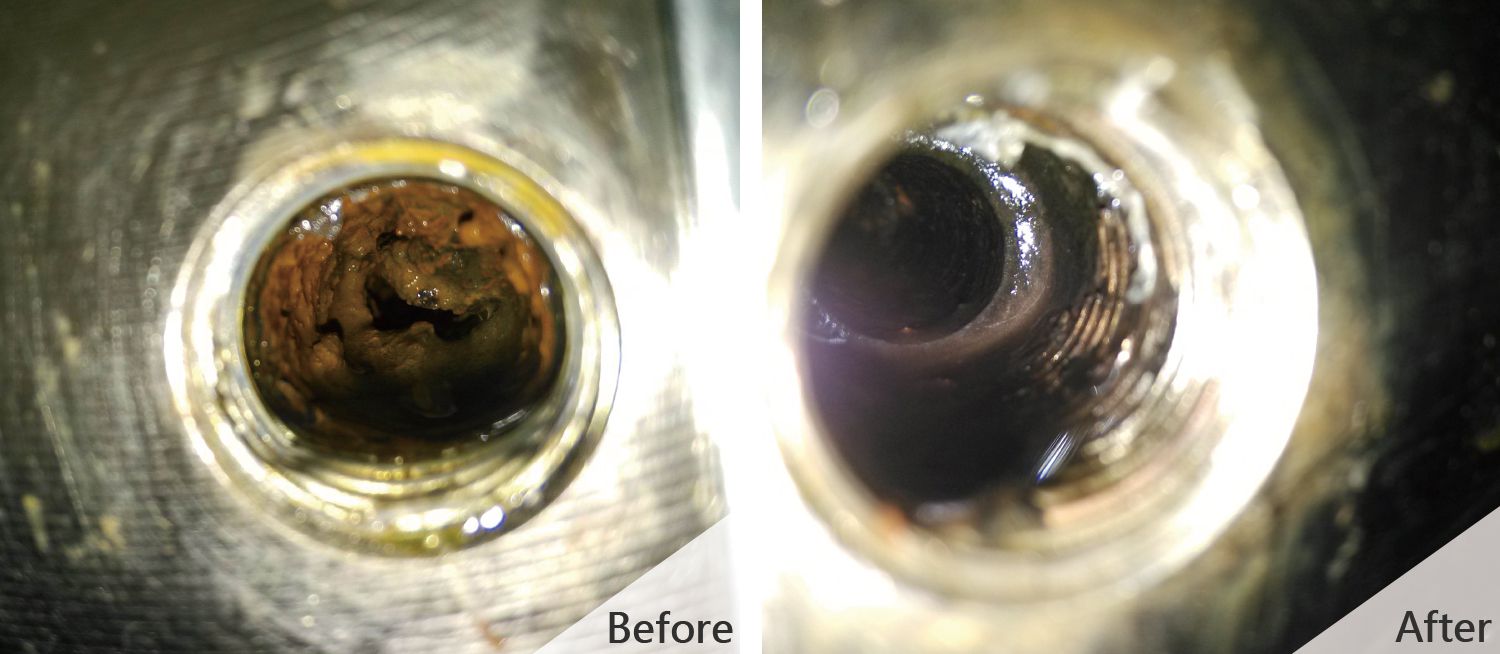

- The patented Eco-Friendly technology, Mix the Air and Water then flush the inner wall of the channel with high-pressure and speedy flow. Repeated pulse to peel off the scale and rust attached on the wall, to clean the pipe fast and efficient.
One machine for Multi Pattern in your factory
https://www.injection.com.tw/en/article/Water-Pulse-Channel-Cleaning-Machine230418.html
Main specifications
| Model Number | KWCII-15C | KWCII-22C | KWCII-30C | KWCII-55C |
|---|---|---|---|---|
| Cleaning Medium | Water or Chemical | |||
| Control System | PLC, Touch Panel and KING’S Operation System | |||
| Water Tank Capacity | 100L Single/Dual | 100L Single/Dual | 150L Single/Dual | 150L Single/Dual |
| Piping Dia | 3/8" x 8 | 1" x 2 | 1.5" x 2 | 2" x 2 |
| Pump Capacity | 1.5KW | 2.2KW | 3.0KW | 5.5KW |
| Power Source (V/Hz) | AC220V 1P+E / AC380V 3P+E(5M) | |||
| Water Tank Number | Single or Dual Water Tank | Single or Dual Water Tank | Single or Dual Water Tank | Single or Dual Water Tank |
| Outlook Dimension | 160x50x120cm | 160x50x120cm | 175x60x130cm | 175x60x130cm |
| Weight | 280Kg | 290Kg | 360Kg | 380Kg |
